7. Global environment

The global environment category contains mainly the context of a simulation.

Global environments are HDF5 named groups children of /globalEnvironment.

Example :

data.h5
`-- globalEnvironment
    |-- $ge1
    `-- $ge2

data.h5:/globalEnvironment/$ge1 and data.h5:/globalEnvironment/$ge1 are two global environment instances.

7.1. Time and frequency domains

If the simulation is in the frequency domain :
/globalEnvironment/$globalEnvironment/frequency contains the frequencies the computation will be performed at.
If the simulation is in the time domain :
/globalEnvironment/$globalEnvironment/time is the definition of the simulation time.

/globalEnvironment/$globalEnvironment/frequency‘s characteristics are :

  • is a floatingType
  • physicalNature is frequency
  • unit is hertz

/globalEnvronment/$globalEnvironment/time‘s characteristics are :

  • is a floatingType
  • physicalNature is time
  • unit is second

Note

If floatingType equals vector, it is a float vector.

Examples

data.h5
`-- globalEnvironment
    `-- $ge1
        `-- time[floatingType=vector]

data.h5
`-- globalEnvironment
    `-- $ge1
        `-- frequency[@floatingType=logarithmListOfReal1
                      @first=10e3
                      @last=1e9
                      @numberOfValues=100]

Note

For some temporal methods only the maximum time (tmax) is relevant, in fact, the simulation is performed for time in the interval [0, tmax], use an Interval for this case :

data.h5
`-- globalEnvironment
    `-- $ge1
        `-- time[@floatingType=linearListOfReal2
                 @first=0
                 @last=1e-6]

7.2. Limit conditions

To gain a lot computation time, it is often necessary to model a system with symmetries. The computation domain is then terminated with particular limit conditions.

Limit conditions can be :

  • electricWall. An electric wall is positioned as if a perfect electrical conductor was in the mesh.
  • magneticWall. A magnetic wall is positioned, the mirror effect is relative to the magnetic component.

Limit conditions are given by a /globalEnvironment/$ge/limitConditions HDF5 group.

For a cartesian coordinate system, the computation limits are located by six string HDF5 attributes :

  • xinf locates the inferior-x limit, the first plan orthogonal to the axis-x
  • xsup locates the superior-x limit
  • xinf locates the inferior-y limit
  • ysup locates the superior-y limit
  • zinf locates the inferior-z limit
  • zsup locates the superior-z limit

example :

data.h5
`-- globalEnvironment
    `-- $ge1
        `-- limitConditons[@xinf=electricWall
                           @xsup=electricWall
                           @yinf=magneticWall]

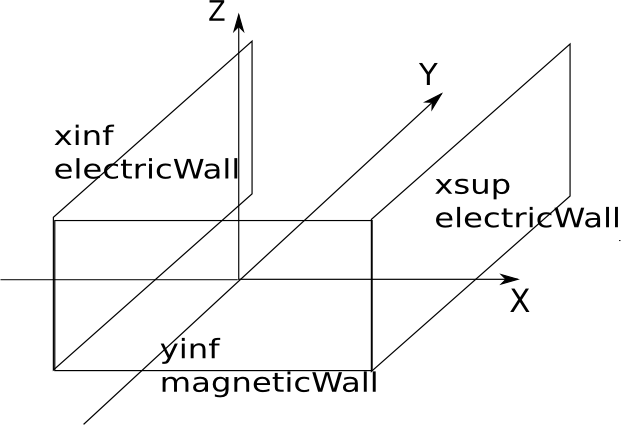

The example defined two electric symmetries and one magnetic symmetry as in the sketch below :

_images/symmetry.png
